Re: Adjusting front end suspension height



1 3/4"?  You should be shooting for the 2".  Station Wagons are Suburbans.




-------Original Message-------

Date: 10/31/2013 12:25:44 PM
Subject: Adjusting front end suspension height

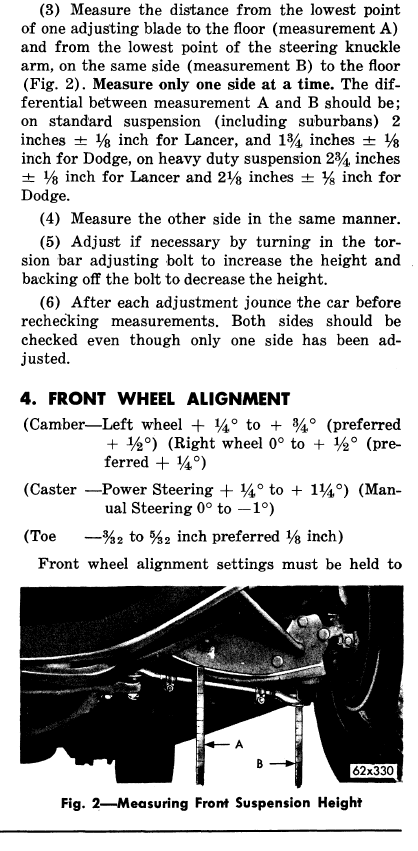

Figured it is a good idea to record before dimensions of my ’62 wagon front end before tearing into it.  Going by the service manual, is it saying to measure from the lowest point on the torsion bar adjuster nut plate??



Because measuring from the floor to there, and subtracting the measurement from the floor to the lowest point on the outer tie-rod, does not get anything close to the 1 ¾” specified.  More like 4”.....  She will be quite the low rider if I set it to 1 ¾”.



I also recorded as is measurements to the wheel well openings at the center-line of the wheels, she does list a bit to the starboard side.  Goes along with the boat like ride.  ; )



Left front:             26.5”

Right front:           26.125”



Left rear:              24.125”

Right rear:             23.75”



F:/Incredi Mail/IM/Runtime/Message/{E4EC7864-0EA7-4BD7-98E2-0A7F0655757E}/Reply\image0011.png



--
--
--
