Re: Engine Mount Bracket

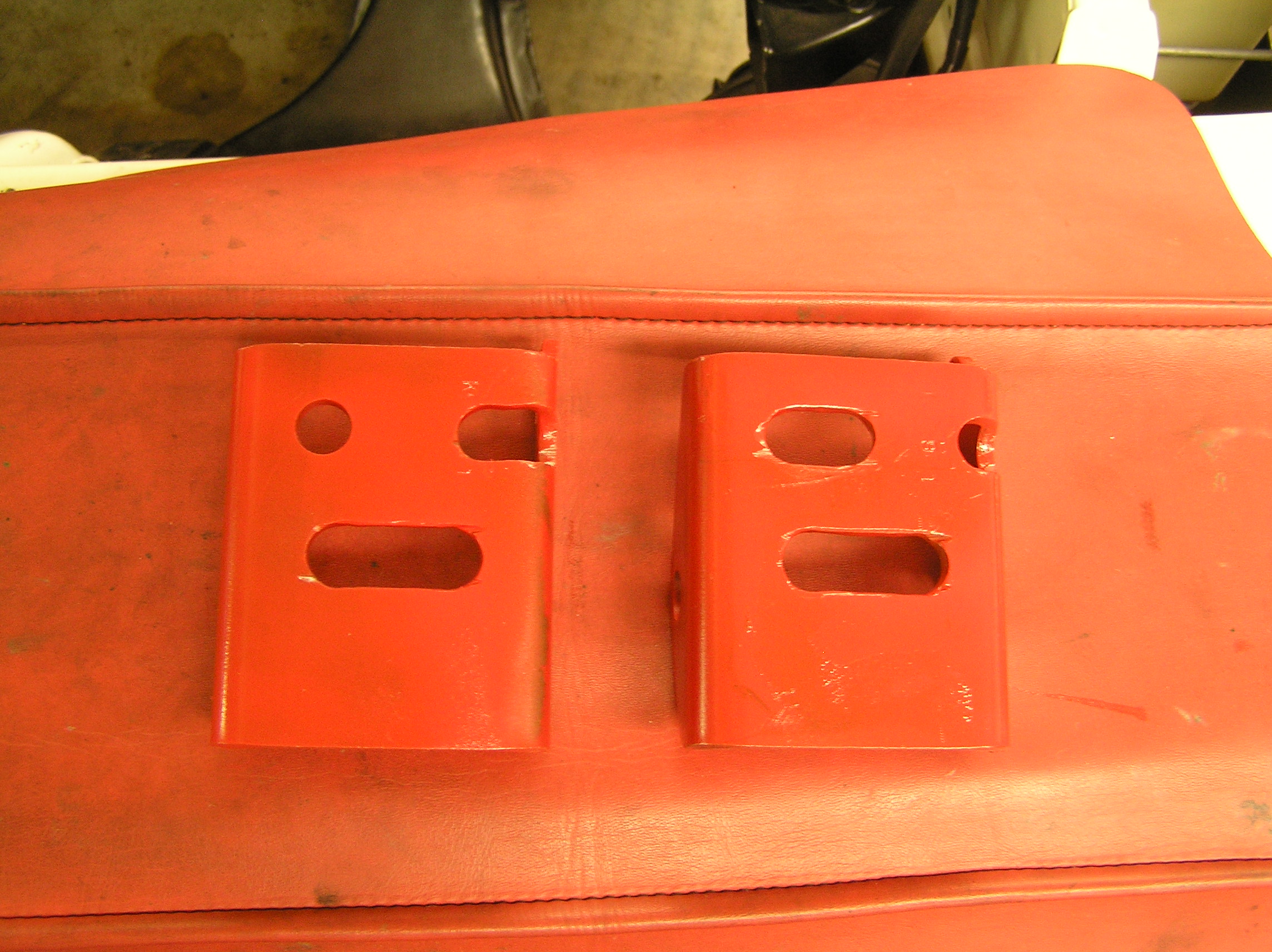

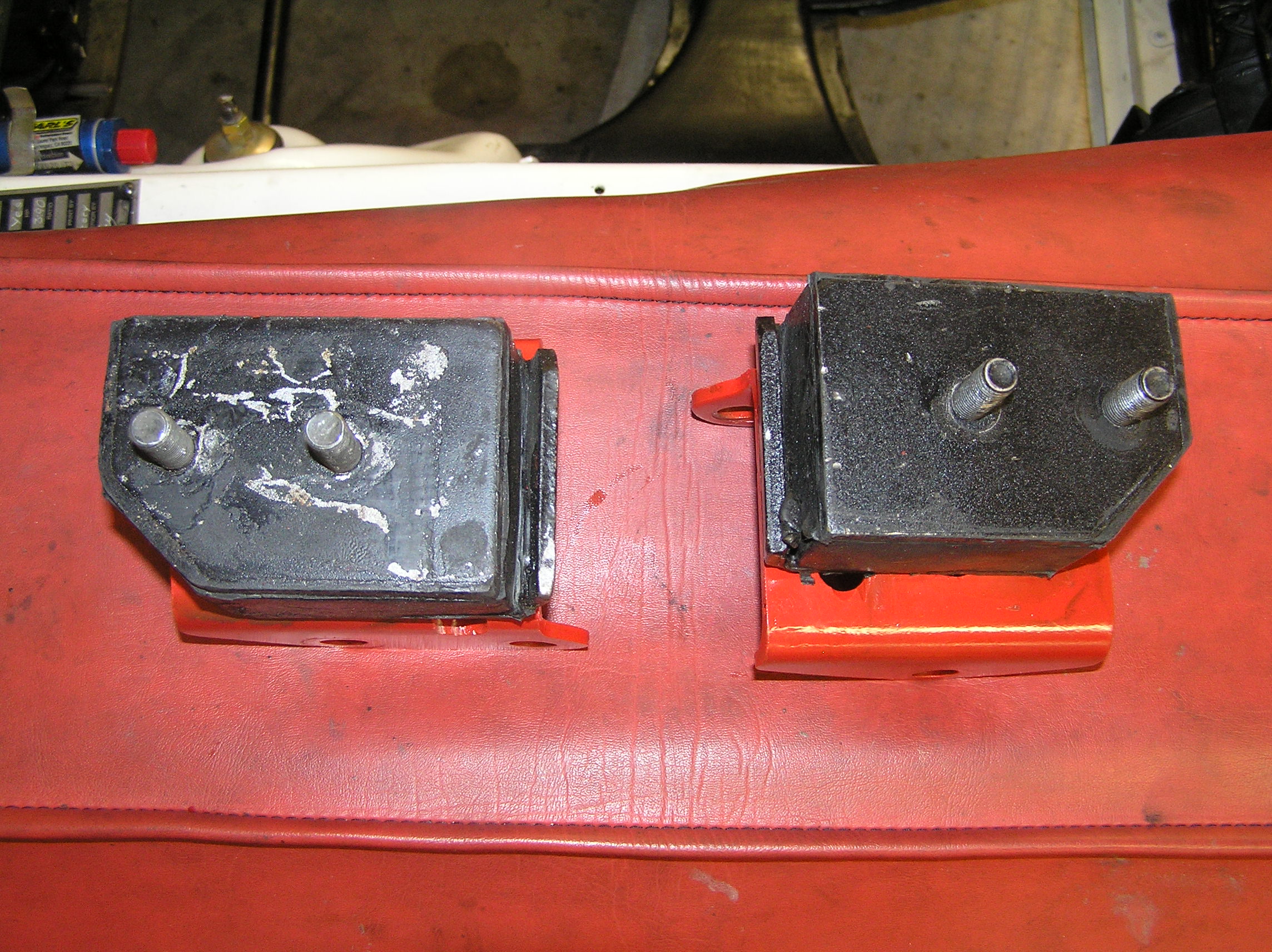

Here are pics of the motor mount mods that help with the TTI's.  #1 is stock, #2 is the mod that slots the hole.

Hope this is helpful.

Rich K

On Tue, Jan 27, 2015 at 7:28 AM, Bill M <y1topbanana73@xxxxxxxxx> wrote:
On Jan 27, 2015 8:25 AM, y1topbanana73@xxxxxxxxx wrote:

Can anyone tell me if these are the correct mounts for a b body? They don't look the same as the TTI drawing sheet. These are the amounts that came with my spare motor.

On Jan 26, 2015 1:20 PM, <furyus63@xxxxxxxxxxx> wrote:
When I first installed my engine I did not see the modification notice, the Pitman Arm hit so I had to make the modification, no big deal and it worked. Rich. K did not know about the mod, I sent him the sheet and he was good to go. Contact him as I believe he still has the photos he posted on the Poly site. Yahoo's new system will not let you copy posted photos so I can't get them for you.


From: "Bill M" <y1topbanana73@xxxxxxxxx>
To: furyus63@xxxxxxxxxxx
Sent: Monday, January 26, 2015 1:01:18 PM
Subject: Re: Engine Mount Bracket

Thanks for the sheet. Called them and they said I MIGHT have to do it. So you better believe im going to just in case!

On Jan 26, 2015 12:47 PM, "Bill M" <y1topbanana73@xxxxxxxxx> wrote:

Nope! Didn't get anything about this. Glad someone mentioned it.  I'll have to call them.

On Jan 26, 2015 12:43 PM, <furyus63@xxxxxxxxxxx> wrote:
You should have received this notice with your headers. The modification allows the engine to be slide back up to 1/2" allowing for Pitman Arm clearance on the passenger side.


--
--
--
Please address private email -- email of interest to only one person -- directly to that person. That is, email your parts/car transactions and negotiations, as well as other personal messages, only to the intended recipient. Do not just press "reply" and send your email to everyone using the general '62-'65 Clubhouse public email address. This practice will protect your privacy, reduce the total volume of mail and fine-tune the content signal to Mopar topic. Thanks!

1962 to 1965 Mopar Clubhouse Discussion Guidelines:
http://www.1962to1965mopar.ornocar.org/mletiq.html and http://www.1962to1965mopar.ornocar.com/general_disclaimer.html.
--
You received this message because you are subscribed to the Google Groups "The 1962 to 1965 Mopar Mail List Clubhouse" group.
http://groups.google.com/group/1962to1965mopars?hl=en.

---
You received this message because you are subscribed to the Google Groups "The 1962 to 1965 Mopar Mail List Clubhouse" group.
To unsubscribe from this group and stop receiving emails from it, send an email to 1962to1965mopars+unsubscribe@xxxxxxxxxxxxxxxx.
For more options, visit https://groups.google.com/d/optout.



--
Rich Kinsley '64 Dodge Polara 4dr 318poly w/goodies

--
--
--
Please address private email -- email of interest to only one person -- directly to that person. That is, email your parts/car transactions and negotiations, as well as other personal messages, only to the intended recipient. Do not just press "reply" and send your email to everyone using the general '62-'65 Clubhouse public email address. This practice will protect your privacy, reduce the total volume of mail and fine-tune the content signal to Mopar topic. Thanks!

1962 to 1965 Mopar Clubhouse Discussion Guidelines:
http://www.1962to1965mopar.ornocar.org/mletiq.html and http://www.1962to1965mopar.ornocar.com/general_disclaimer.html.
--
You received this message because you are subscribed to the Google Groups "The 1962 to 1965 Mopar Mail List Clubhouse" group.
http://groups.google.com/group/1962to1965mopars?hl=en.

---
You received this message because you are subscribed to the Google Groups "The 1962 to 1965 Mopar Mail List Clubhouse" group.
To unsubscribe from this group and stop receiving emails from it, send an email to 1962to1965mopars+unsubscribe@xxxxxxxxxxxxxxxx.
For more options, visit https://groups.google.com/d/optout.

Attachment: Motor mount mods Poly w-TTI 002.JPG
Description: JPEG image

Attachment: Motor mount mods Poly w-TTI 004.JPG
Description: JPEG image

Attachment: Motor mount mods Poly w-TTI 005.JPG
Description: JPEG image
