Re: confused alternator installer
[Date Prev][Date Next][Thread Prev][Thread Next][Date Index][Thread Index]

Re: confused alternator installer

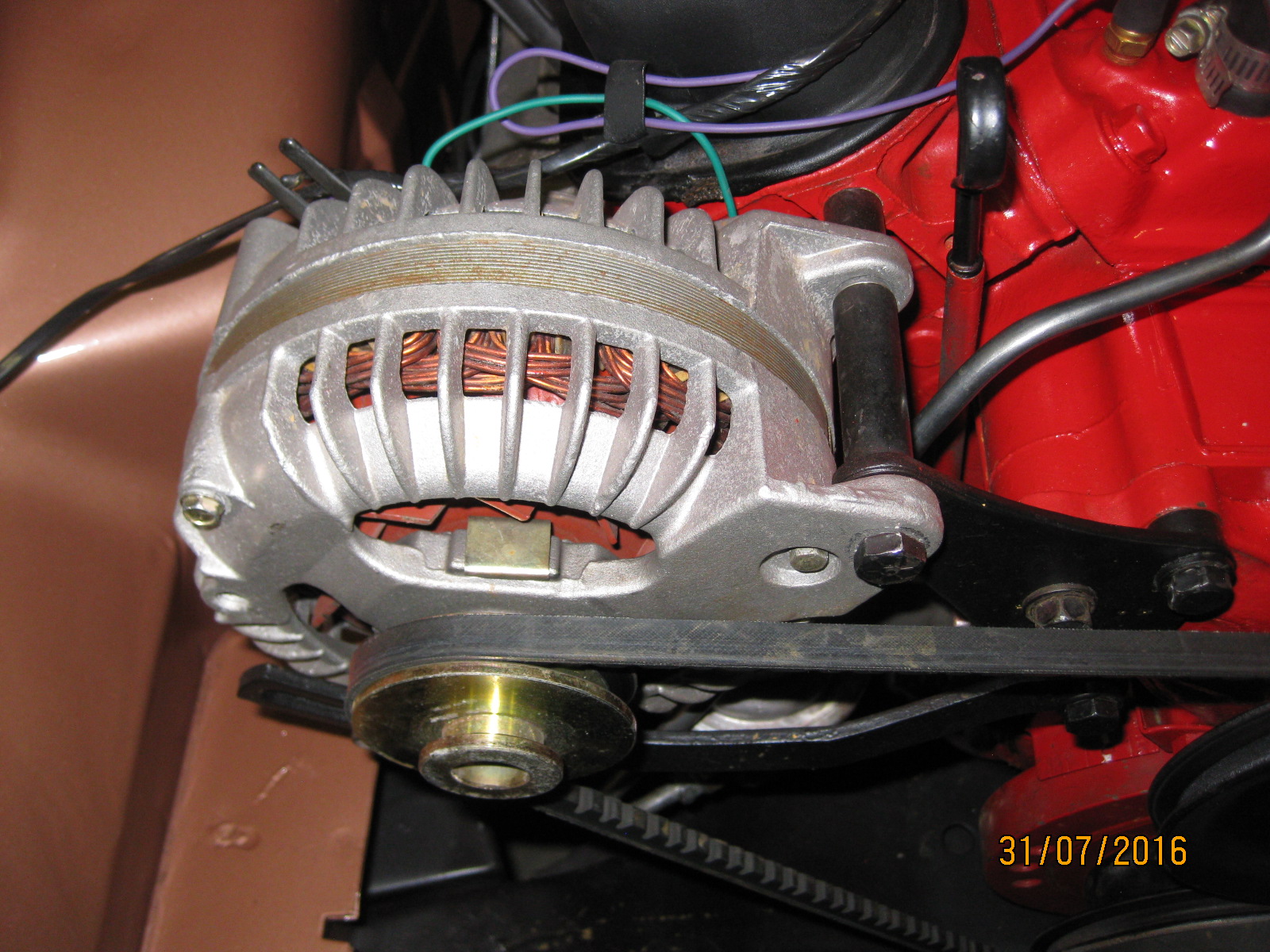

Neal...the triangle bracket is correct for '67...the one with the di[pstick hole is '66 and earlier. Here's a pic of my stock '67 setup....hope it helps...

Darwin
Victoria BC Canada
----- Original Message -----
Sent: Sunday, July 31, 2016 9:15 PM
Subject: confused alternator installer

Any body have any real good photos close up showing the proper alternator bracketry set up for an LA small block. Mine has the early iron water pump not the 1970-up gattling gun looking pump. My 340 had some cobbled together  homemade nightmare for an alternator bracket. I dug out my  LA engine bracket setups, and 4 the life of me I cannot figure it out. all the adjustment arms wont quite reach, they seem about an inch too short. For the alernator hanger i have a setup from my old blown up 1967 273  (with the hole in the middle the dipstick comes up through) and  a triangular plate type with 3 holes. Of course I have lost all the spacer tubes for the long bolt going thru the alternator. I can't figure it out.
 neal zimmerman, eugene oregon

--
--
--
