   Forward Look Technical Discussions -> Fender/VIN Tag and Broadcast Sheet DecodingMessage format

Bporter
Posted 2019-07-09 12:12 AM (#584594)
Subject: 56 St Regis IBM Card Decoding


Member

Posts: 13

I have recently gotten my IBM card for my 56 New Yorker St Regis from Chrysler Historical and I've been working on the decoding. After dealing with the card for my 56 Coronet (with a LOT of help from the posts here) this one is not too bad. I've figured out the punch pattern and verified that the printed numbers are correct. Some of the items listed I've been able to pick out such as the paint colors (309: black roof, white middle and red bottom) and the interior trim ( gray cloth and white leather with a gray dash pad). Other items however I am lost on. There are four option groups listed: Safe,Custom, Conv and Power. Does anyone have any information on what these consisted of? I know that I have some interior options like a clock that aren't listed separately so I assume they're included in one of these but I'm not sure. I'm just getting started on this car and,unlike my coronet, I know very little about this one. There is no body plate, no motor and the interior has had a lot of changes done to it. This card is going to be my main source of making sure it's back as close as possible to original. Any help you guys can give me with the decoding or pointing me in the right direction would be greatly appreciated.



(WIN_20190709_00_17_50_Pro (2).jpg)



(WIN_20190709_00_18_22_Pro.jpg)



Attachments
----------------
Attachments WIN_20190709_00_17_50_Pro (2).jpg (36KB - 365 downloads)
Attachments WIN_20190709_00_18_22_Pro.jpg (38KB - 316 downloads)
Top of the page Bottom of the page
56D500boy
Posted 2019-07-09 1:53 AM (#584596 - in reply to #584594)
Subject: RE: 56 St Regis IBM Card Decoding



Expert 5K+

Posts: 9855
5000200020005001001001002525
Location: Lower Mainland BC
Your photos are too small at 36 kB when the limit is 250 kB. 1024 x 768 pixels is somewhere around 180 kB and it is a good size.

Then we can see your card better and try to help you.

In the meantime, you should buy this on eBay:

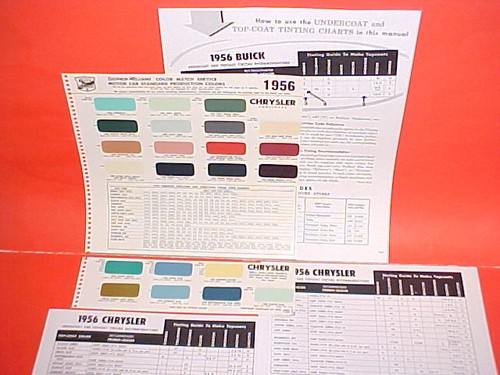

https://www.ebay.ca/itm/1955-1956-CHRYSLER-IMPERIAL-300B-WINDSOR-NEW...



Here are some similar examples of your car's colour scheme:





Edited by 56D500boy 2019-07-09 2:06 AM
Top of the page Bottom of the page
frwl
Posted 2019-07-09 8:12 AM (#584599 - in reply to #584594)
Subject: RE: 56 St Regis IBM Card Decoding


Expert

Posts: 1876
1000500100100100252525
Hello Bporter. I get something for you.

Upper Row:

46 = MODEL AND BODY TYPE = New Yorker St.Regis 2 Door Hardtop
309 = PAINT = Cloud White upper, Regimental Red lower and Raven Black roof color colors
21 = TRIM = Medium Gray Brocatelle and White Leather
1 = DRIVE = Left Hand
026 = SCHEDULE NO. = 26th day since 1956 model year production is beginning (same in lower left corner of pic. – OCT 4, 1955)
1376 = SCHEDULE ITEM = 376th car built that day

Bottom Row:

3 = TRANS = PowerFlite 2speed Push Button Automatic Transmission
1 = GEAR RATIO = 3.36 to 1 Rear Axle Ratio (standard on the New Yorkers)
7 = RADIO = Hi-Fi Phonograph, Radio MOPAR Model 844 Music Master (6 push buttons) and Rear Seat Speaker
1 = ANTENNA = Manual
4 = HEATER = Conventional Type, Hot Water

ACCESSORY GROUPS:

Safety Group (not stamped – it is a standard equipment on the New Yorkers) which includes:
Lights – Automatic Rear Door Switch
Lights – Back up
Light – Glove Box
Light – Hand Brake Flasher
Light – Luggage Compartment
Safety Cushion Dash Panel
Windshield Washer
Prismatic Mirror

3 = Custom Group:
Custom Steering Wheel
White Side Wall Tires
Rear License Plate Frame
Inside Prismatic Mirror

5 = Convenience Group
Sun Visor Vanity Mirror
Solex Tinted Glass
Left Outside Rear View Mirror

9 = Power Group
Power Steering only. Your car is not equipped with Power Windows and Power Seat. Power Brakes is standard.

8 = TRACER = no info. A delivery route, probably.
