{Chrysler 300} Lighting and wiring 65-68 Chrysler



With the chatter on brighter headlamps comes my warning about slab side (65-68) 300 models and similar. These use a fuse block made out of a material just short of flammable. On my 68 the circuit overheated when I re-lamped the federally mandated 1968 side marker lights. It took two years for me to find the burned 18 gauge wire feeding the parking, tail and stop lamps along with the 4 side marker lamps. It was buried under a few other wires so I never saw it while by-passing the AC circuit which had previously burned out its block connections over 54 years.  Before I found this I had replaced light switches 3 times as the failure behaved as such…but I was wrong.



During the same period with intermittent parking, tail & stop lamps was headlamps going out and coming back. This seemed related but was not. The bulkhead connectors had munged up. A red herring.



The wiring on these cars at the fuse block is not great, with too small a gauge. So before you add more load to these already woefully under-wired circuits check your wiring and add the relays if the lamps will draw appreciably more current.



(See attached photos)



Danny Plotkin





cid:image001.jpg@01CC0670.359FCA30



Daniel D. Plotkin

Licensed in MA, CT, RI, NH & NY

360 Bloomfield Avenue

Suite 208

Windsor, CT 06095

Office: 860-683-9000

Cell:  413-237-9629

Fax: 860-683-1600

www.northeastretail.com



--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/000001d8cc38%2479fb0b00%246df12100%24%40northeastretail.com.

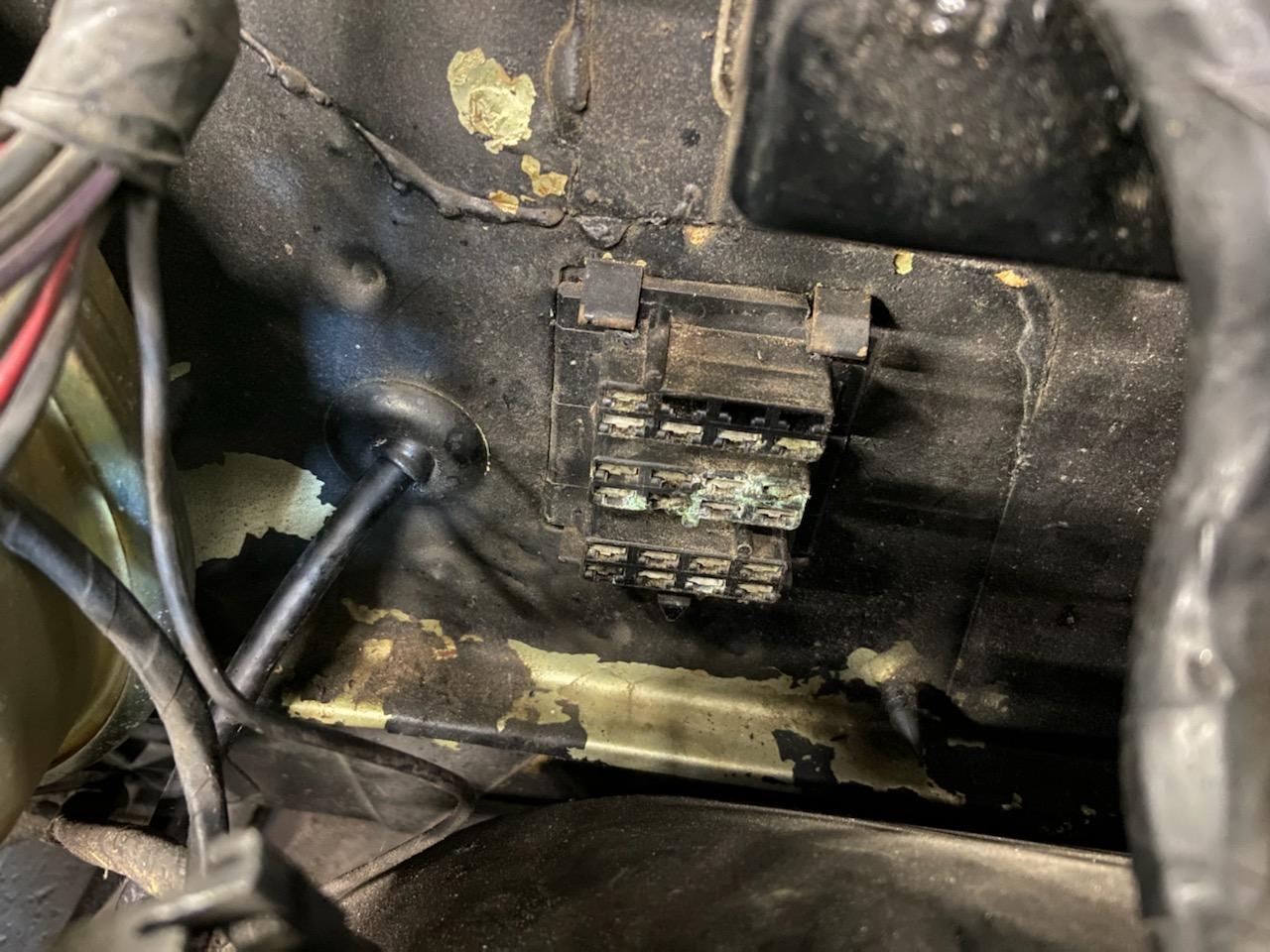

Attachment: Chrysler NY bulkhead 1.jpeg
Description: JPEG image

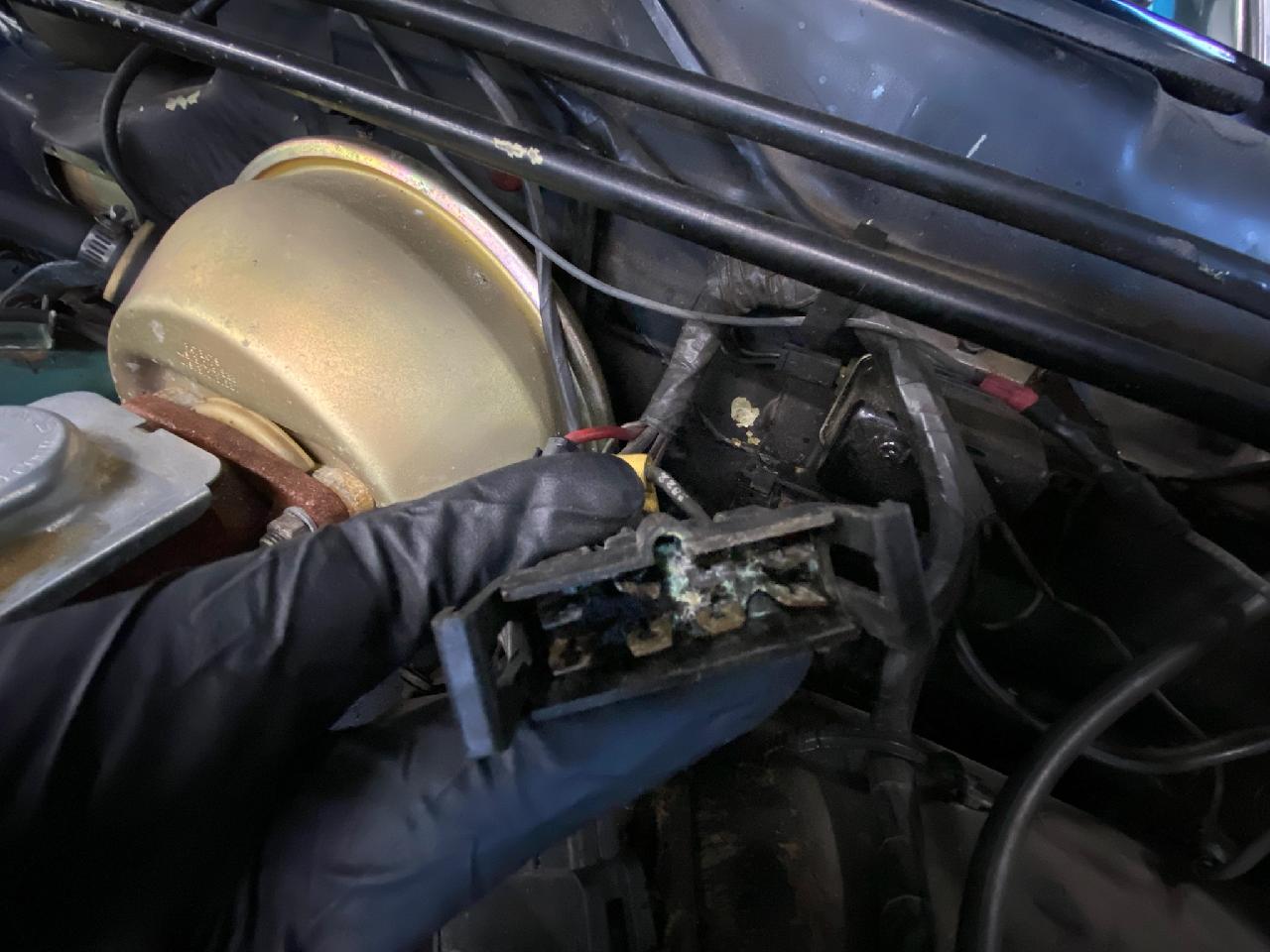

Attachment: Chrysler NY bulkhead 2.jpeg
