Re: {Chrysler 300} Problem
[Date Prev][Date Next][Thread Prev][Thread Next][Date Index][Thread Index]

Re: {Chrysler 300} Problem

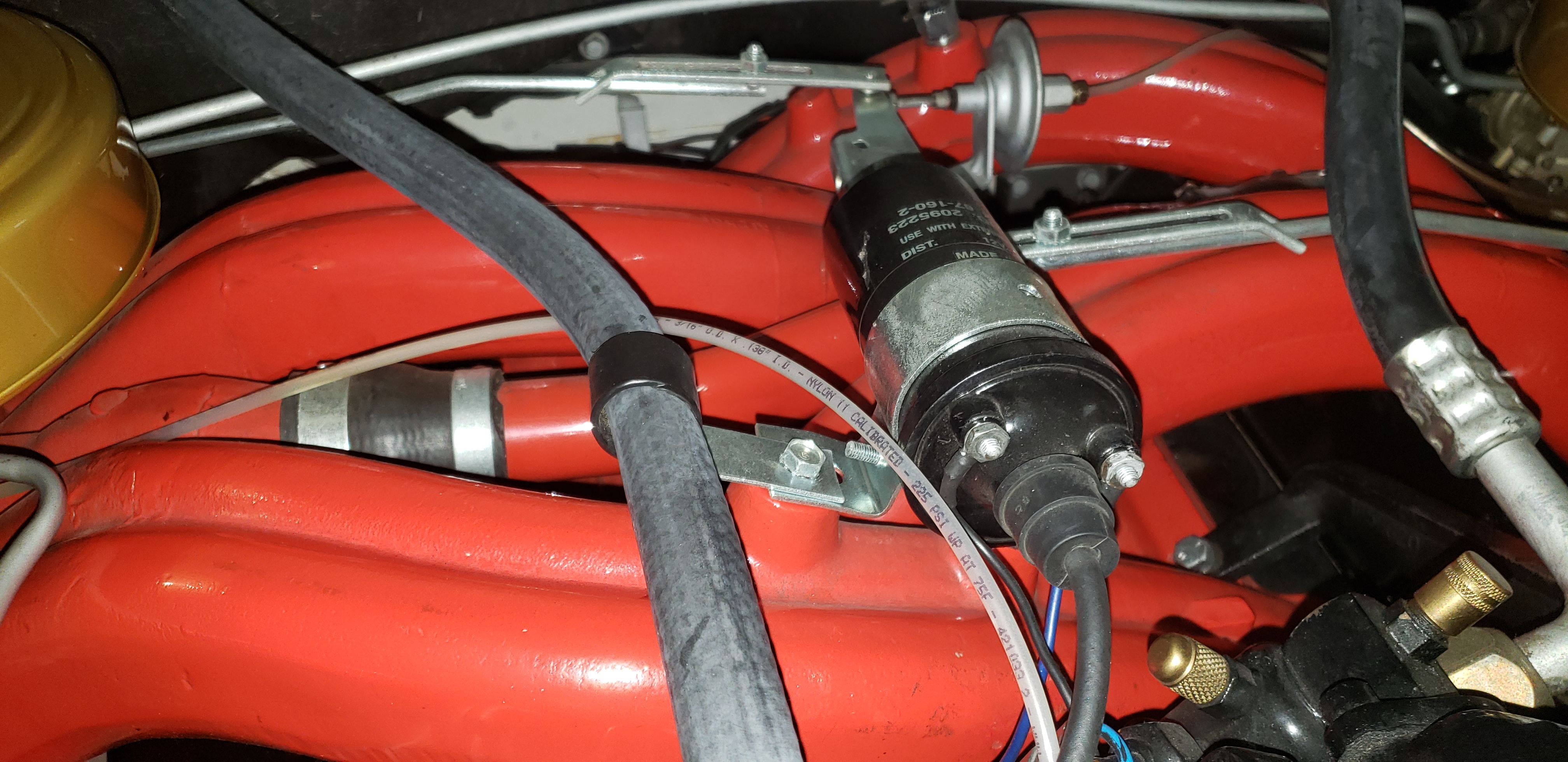

Keith, please see the attached two photographs that depict the hose brackets that were missing on my F.

I fabricated these out of sheet metal dip them in liquid rubber and they look exactly like the originals.

Danny Plotkin



Sent from my Verizon, Samsung Galaxy smartphone


-------- Original message --------
From: 'Keith Langendorfer' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
Date: 7/13/23 8:01 AM (GMT-05:00)
To: Noel Hastalis <cpaviper@xxxxxxxxxxx>, John Grady <jkg@xxxxxxxxxxxxxxxxx>
Cc: Chrysler300 <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
Subject: Re: {Chrysler 300} Problem


Thanks, Noel and John - all very helpful!

I wonder if there’s  a source for the J shaped bracket that mounts on the right fender that holds the heater hose away from that carb and also the one that holds the other heater hose next to the coil?

Keith

On Jul 12, 2023, at 11:19 AM, Noel Hastalis <cpaviper@xxxxxxxxxxx> wrote:


Good Morning Keith,

I've attached a few photos I shot of Gil's F convertible at our Spring 2012 Chattanooga Meet. Perhaps they'll help you.

Noel

On 07/11/2023 9:46 PM CDT 'Keith Langendorfer' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:


Folks

I hate to beat a dead horse on this one but could someone with a correct F/G please email me a closeup of the heater hoses as they come off the water pump and go under the cross rams (assuming both hoses do?)

My F has an over the top arrangement on the hoses themselves and also a strange “balance tube” between the in and out fittings which I’ve known was there but now I’m wondering if the factory had a much more subtle form of this when these cars were built?

I should have looked more closely and taken pics of all the F and G’s at our meet in Hershey but I was so focused on crossram firewall and bell crank linkage on J/K’s I didn’t - Mea Culpa!

Please see pics below.

Thanks!

Keith
<image0.jpeg>
<image1.jpeg>

On Jul 9, 2023, at 2:46 PM, dplotkin@xxxxxxxxxxxxxxxxxxx wrote:

Ray, if you can blow up the attached photo you might see the copper tubing from Home depot I used to plumb my 61 Savoy Sono-Ramic in 2007, when I knew next to nothing about the particularities of the 300 franchise. I used internet photos of mostly G engine bays to bend and install the pipes and it was easy. I never did get a good answer as to why some ram inducted cars use the copper pipe and others including my F do not.





-----Original Message-----
From: "Ray Jones" <1970hurst@xxxxxxxxx>
Sent: Sunday, July 9, 2023 2:30pm
To: "william ELDER" <belder@xxxxxxxxx>
Cc: "Chrysler 300 Club International" <chrysler-300-club-international@xxxxxxxxxxxxxxxx>, "Ray Jones" <1970hurst@xxxxxxxxx>
Subject: Re: {Chrysler 300} Problem

Hi Bill;
How about cutting the pipe and sweating in a copper coupler fitting to orient the end as needed?
Not as new, but it seems like many have made do with rubber hose all the way across the valley.
At least you'll be close to as designed, and not really very noticeable.
Ray

On Sun, Jul 9, 2023 at 1:56 PM william ELDER <belder@xxxxxxxxx> wrote:

Thanks to everyone who responded to my copper heater pipe question.  I have to believe at this point that the driver side pipe is not bent correctly.  I finished up my distributor restoration today and dropped it into position.  I wanted to make sure that I would be able to hook up the pipes to the front water pump housing nipples.  I have decided to buy some Gates hoses that have a molded 90 degree elbow.  I should be able to make the hose connections without collapsing the hoses.



Thanks Again

bill



--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/007b01d9b28e%249e2734d0%24da759e70%24%40cogeco.ca.


--
Ray Jones. Y'all come on down an see us. Ya hear?
--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/CAD72c-wOgeS2fXegV5Gxn_iVy3hdUD8-CH%2B5%2BPFCEc%2BDJPgx6A%40mail.gmail.com.







--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/1688928383.106626614%40apps.rackspace.com.
<Savoy Marks1 (6).JPG>



--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/074D8A99-0206-4FB8-B0E8-251CED045844%40yahoo.com.
<DSC_0761.JPG>
<DSC_0769.JPG>
<DSC_0770.JPG>
<DSC_0764.JPG>

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/0FC52BA9-E8BB-4704-9CC8-AD904152FF16%40yahoo.com.

--
For archives go to http://www.forwardlook.net/300-archive/search.htm#querylang
---
You received this message because you are subscribed to the Google Groups "Chrysler 300 Club International" group.
To unsubscribe from this group and stop receiving emails from it, send an email to chrysler-300-club-international+unsubscribe@xxxxxxxxxxxxxxxx.
To view this discussion on the web visit https://groups.google.com/d/msgid/chrysler-300-club-international/64afedc9.050a0220.74e81.f7f7SMTPIN_ADDED_MISSING%40gmr-mx.google.com.

Attachment: 20230713_082403.jpg
Description: JPEG image

Attachment: 20230713_082411.jpg
Description: JPEG image
